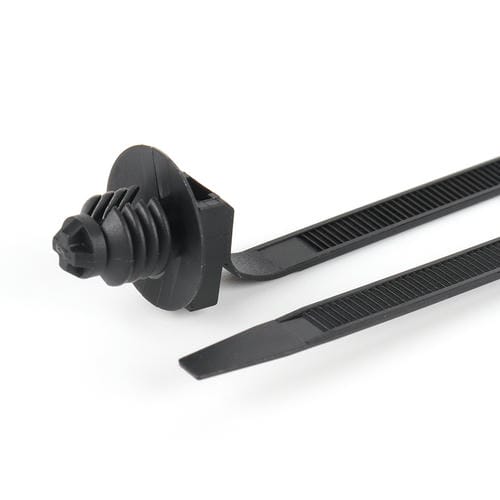

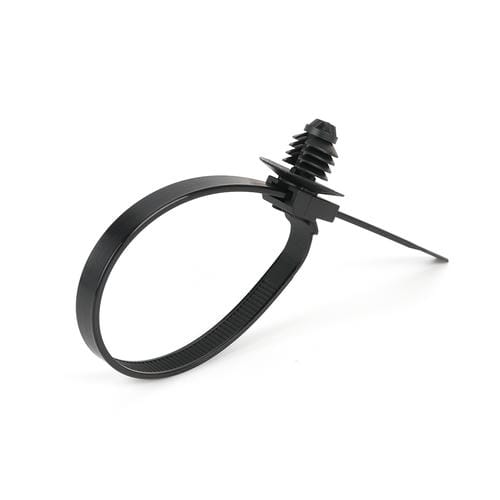

Auto Car Fir Tree Mount Cable Tie

Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!

The cable tie head is always in the specified position
Easy installation, no tools required
Disc ties adjust pressure from all directions to reduce dust and water ingress
With smooth surface inside, protect the cable from damage
Fir head sections are available in various panel thicknesses
Suitable for threaded holes.

Message

Introduction

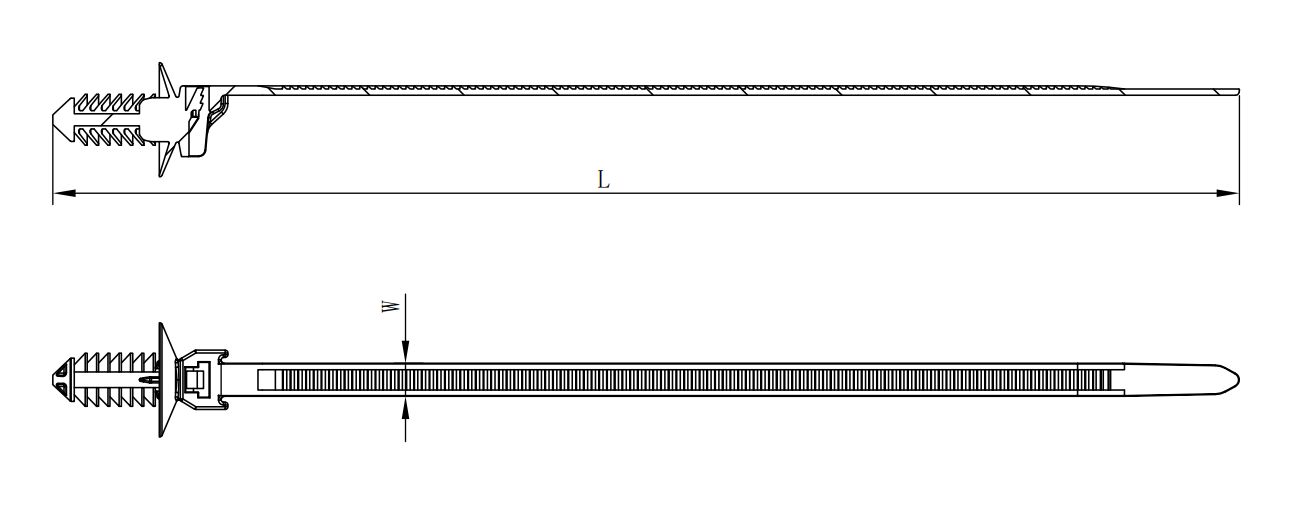

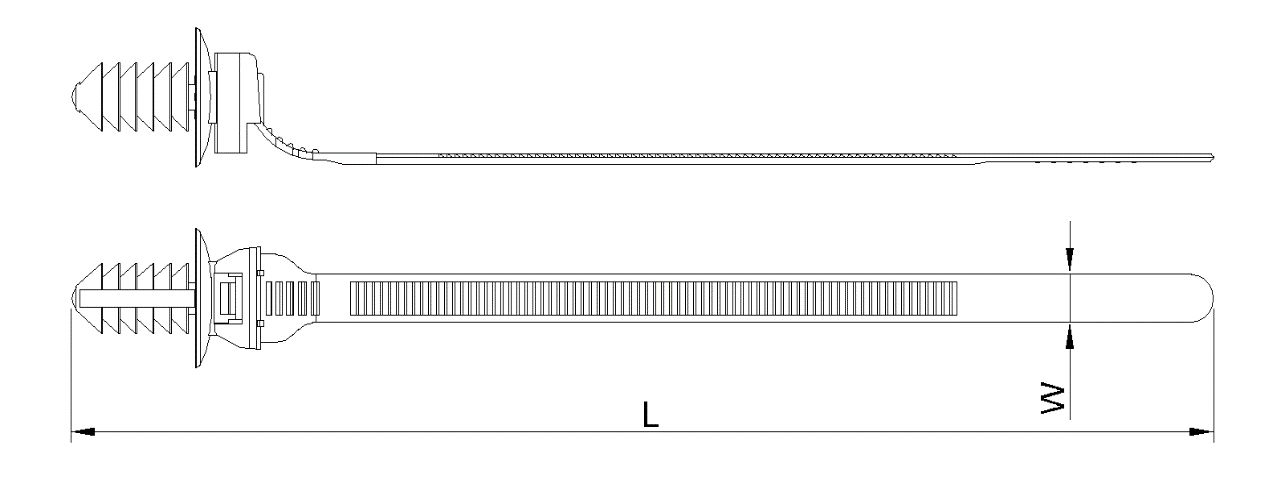

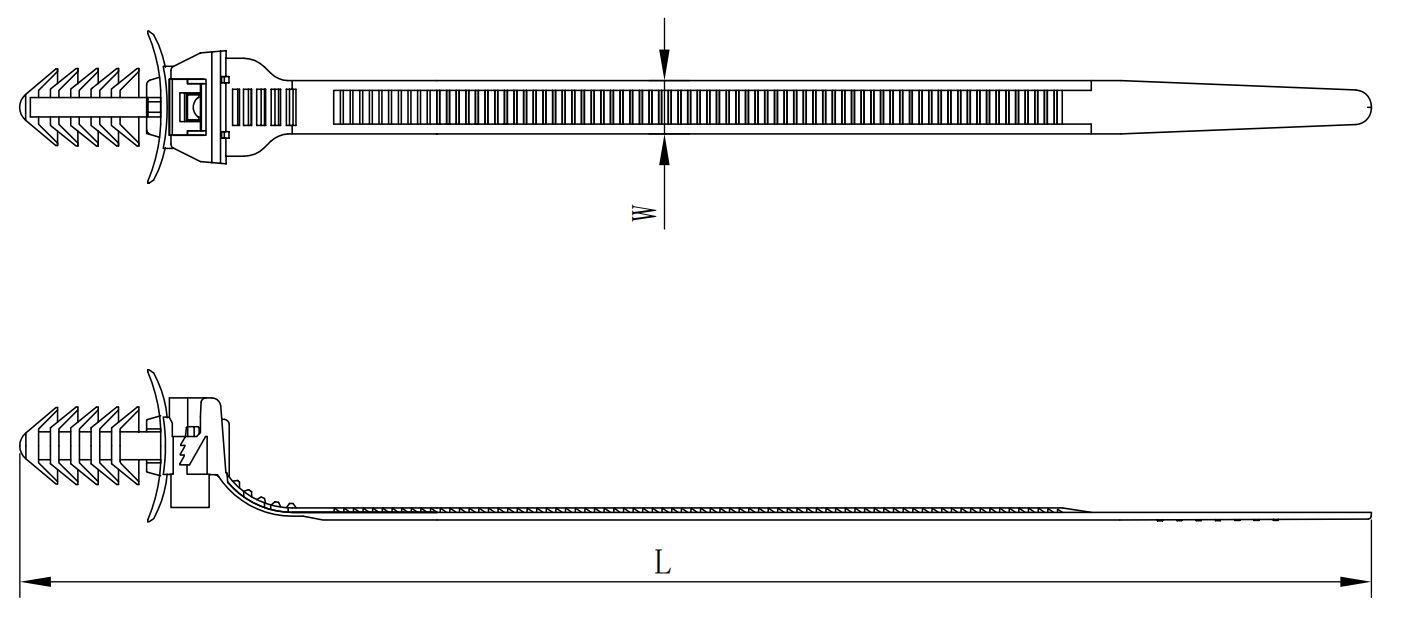

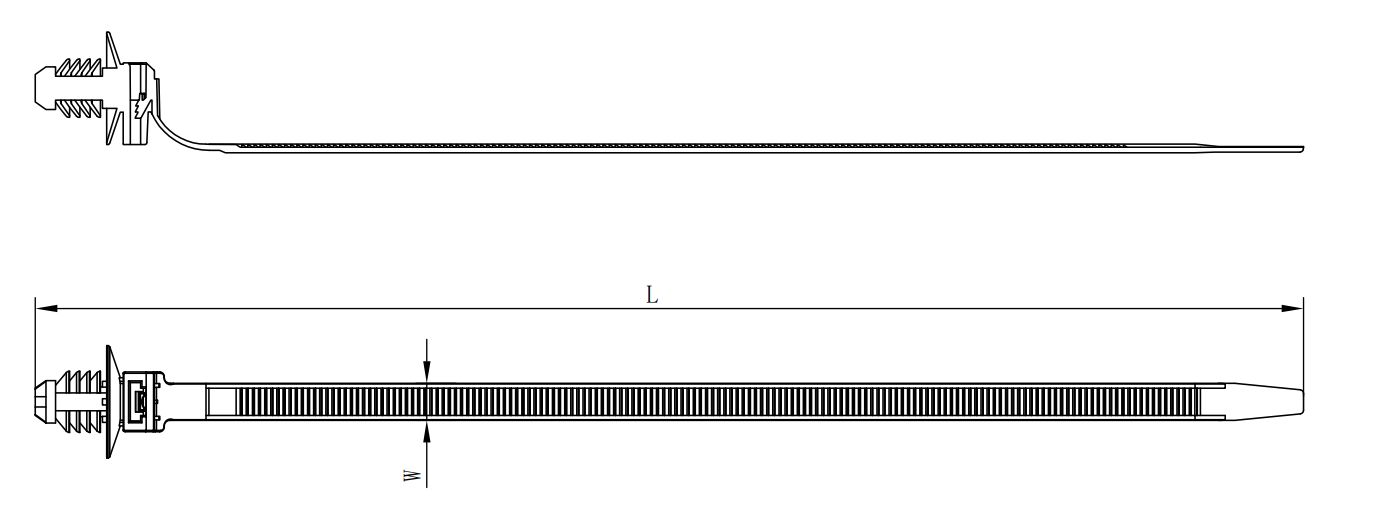

编号	L(长)		W(宽)	(最大)捆扎范围	拉力		孔径(φ)	机板厚度
Item No.	L(长)		W(宽)	Max.Bundle DIA.	Tensile Strength		Hole Dia.	Panel Thickness
Item No.	Inch	mm	(mm)	(mm)	LBS	KGS	mm	mm
CCT-1-8-4C	7″	185	5.5	43	50	22	8.0~8.5	1.0~4.0

编号	L(长)		W(宽)	(最大)捆扎范围	拉力		孔径(φ)	机板厚度
Item No.	L(长)		W(宽)	Max.Bundle DIA.	Tensile Strength		Hole Dia.	Panel Thickness
Item No.	Inch	mm	(mm)	(mm)	LBS	KGS	mm	mm
CCT-1-8-5C	5 1/2″	140	5.5	25	50	22	6.5~7.5	1.0~7.0

编号	L(长)		W(宽)	(最大)捆扎范围	拉力		孔径(φ)	机板厚度
Item No.	L(长)		W(宽)	Max.Bundle DIA.	Tensile Strength		Hole Dia.	Panel Thickness
Item No.	Inch	mm	(mm)	(mm)	LBS	KGS	mm	mm
CCT-1-8-6C	6.69″	170	5.5	35	50	22	6.5~7.5	1.0~8.0

编号	L(长)		W(宽)	(最大)捆扎范围	拉力		孔径(φ)	机板厚度
Item No.	L(长)		W(宽)	Max.Bundle DIA.	Tensile Strength		Hole Dia.	Panel Thickness
Item No.	Inch	mm	(mm)	(mm)	LBS	KGS	mm	mm
CCT-1-8-7C	6.69″	170	4.8	39	50	22	6.5~7	0.7~7.0
