Basic Data:

Material :	PA46
Flammability Of Raw Material :	UL 94 - V2
Oxygen Index :	27
Color	Natural
Operating Temperature :	-40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)

Properties:

1.Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
2.Available in different sizes to cover various bundle diameters
3.Low smoke generation in the event of a fire
4.PA46 is a moisture sensitive material

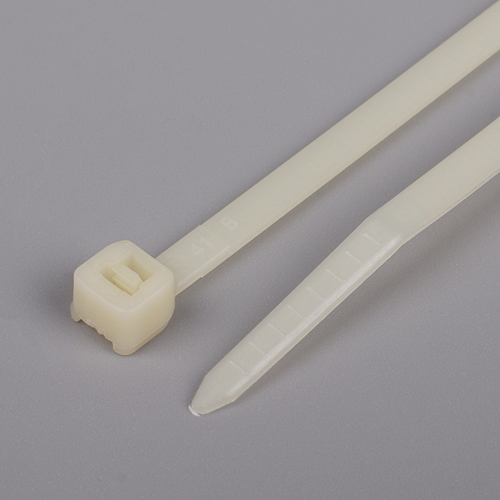

5.Inside serrated cable tie offers strong hold around bundles
6.Easy application either manually or with an application tool

Specification

(The specifications displayed are the best-selling models)

Item No.	Width	Length	Bundle Dia.	Min.Tensile Strength
	mm	mm	mm	kgs	lbs
CCT-E1-1-25100M	2.5	100	2-22	8	18
CCT-E1-1-36150M	3.6	150	3-35	18	40
CCT-E1-1-36200M		200	3-50
CCT-E1-1-48200M	4.8	200	3-50	22	50
CCT-E1-1-48300M		300	3-82
CCT-E1-1-48370M		370	3-98
CCT-E1-1-72370M	7.2	370	4-98	55	120

Our website currently showcases only a portion of our products. If you have specific requirements or need more detailed product information, please feel free to contact us. Our professional team is ready to provide tailored solutions to help your brand stand out. Whether it’s design adjustments, functional enhancements, or packaging optimization, we are here to meet your expectations. We look forward to collaborating with you to create premium products!
