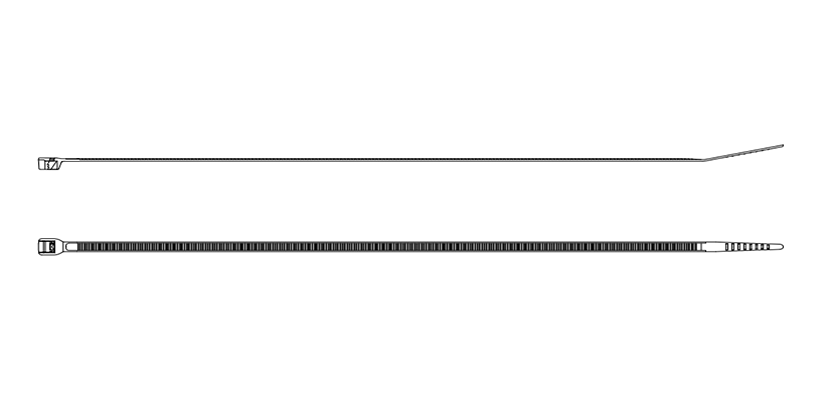

9mm Self-locking Nylon Cable Tie
Our website showcases only a selection of our products. If you have other requirements or can't find the right product, please feel free to contact our customer service team. We are here to assist you!
- Wide range of sizes are used for bundling and securing cables, pipes and hoses. Help to keep the cable tidy&clean.
- Made of 100% good quality plastic that can be recycled well.
- Internal serrated straps for more stable strapping.
- Simple to operate, either manually or with machining tools
- Curved cable ties allow for easy insertion.
Introduction
Product application:
These versatile cable ties can be used in countless applications, for just about any industry. They are abundant at nearly all summer festivals and events. By grouping cables together and holding them tight, they help organize wiring systems and ease the burden of work. They are widely popular in electrical installation works. Other fields of application include telecommunications for example holding networking cables in place, transportation for fastening luggage, and speaker wires. They also have many unique applications for example with fireworks, they are used to secure the fuses together before blastoff! They are also commonly used in many homes for example for harnessing Christmas lights and other home electronics.
Basic Data
Material: Polyamide 6.6 (PA66)
Flammability: UL94 V2
Properties: Acid resistance, corrosion resistance, good insulation, not easy to age, strong endurance.
product category:Internal tooth tie
Is it reuasable: no
Installation temperature: -10℃~85℃
Working Temperature: -30℃~85℃
Color: The standard color is natural(white) color, which is suitable for indoor usage;
The black color cable tie added the carbon black and UV agent, which is available for outdoor usage.
SPECIFICATION
|
Item No. |
Width(mm) |
Length |
Thickness |
Bundle Dia.(mm) |
Standard Tensile Strength |
# Tensile Strength |
|||
|
INCH |
mm |
mm |
LBS |
KGS |
LBS |
KGS |
|||
|
CCT-1-1-90400 |
9 |
15 3/4″ |
400 |
1.75 |
4-105 |
175 |
80 |
200 |
90 |
|
CCT-1-1-90450 |
173/4″ |
450 |
1.8 |
8-118 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90500 |
1911/16″ |
500 |
1.8 |
8-150 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90550 |
211/16″ |
550 |
1.8 |
8-160 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90600 |
235/8″ |
600 |
1.8 |
8-170 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90650 |
259/16″ |
650 |
1.8 |
8-190 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90700 |
27 1/2″ |
700 |
1.85 |
10-205 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90750 |
29 9/16″ |
750 |
1.85 |
10-220 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90800 |
31 1/2″ |
800 |
1.85 |
10-230 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-90920 |
36 1/4″ |
920 |
1.85 |
10-265 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-91020 |
40 1/6″ |
1020 |
1.85 |
10-295 |
175 |
80 |
200 |
90 |
|
|
CCT-1-1-91200 |
47 1/4″ |
1200 |
1.85 |
10-340 |
175 |
80 |
200 |
90 |
|
